• Air conditioning
• Dome light

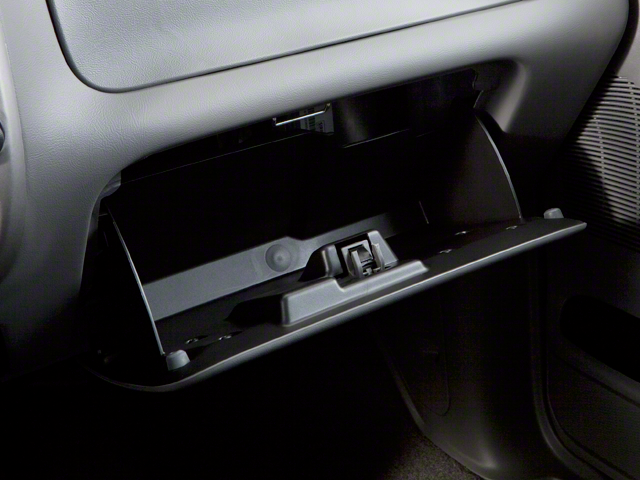

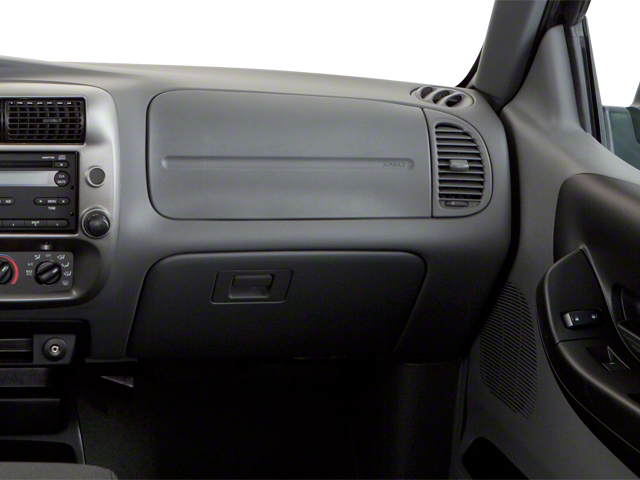

• Glove box

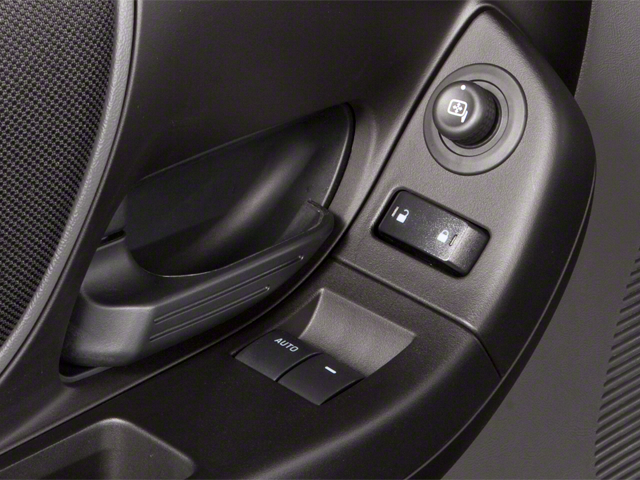

• Pwr door locks
• Remote keyless entry
• SIRIUS satellite radio (subscription required)

• 110-amp alternator
• 3.73 axle ratio
• 4-wheel drive
• Front stabilizer bar
• HD gas shock absorbers
• Pwr front/rear disc brakes
• Pwr rack & pinion steering

• Tire pressure monitoring system (TPMS)

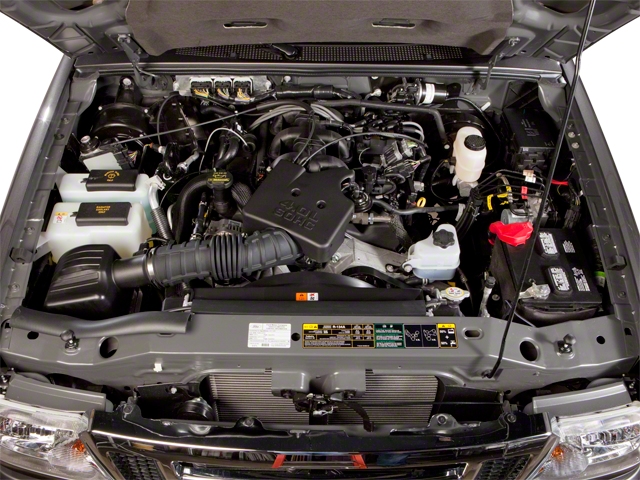

4.0L SOHC V6 ENGINE

• (STD)

• Tow Hooks
• Power Steering
• 4-Wheel Disc Brakes
• Tires - Front All-Terrain
• Tires - Rear All-Terrain
• Aluminum Wheels
• Conventional Spare Tire
• Fog Lamps
• Power Mirror(s)
• Intermittent Wipers
• Variable Speed Intermittent Wipers

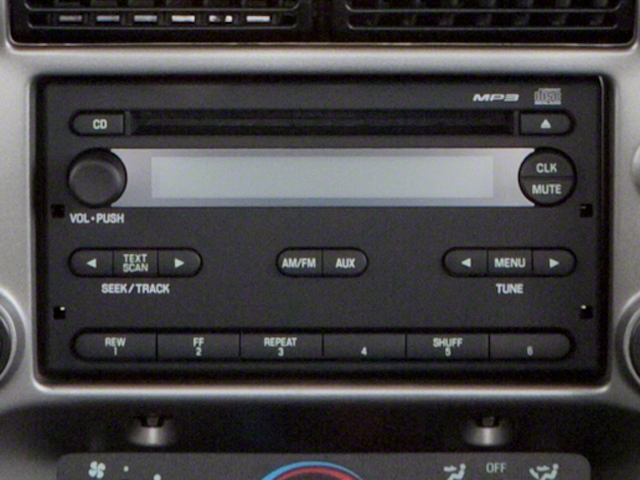

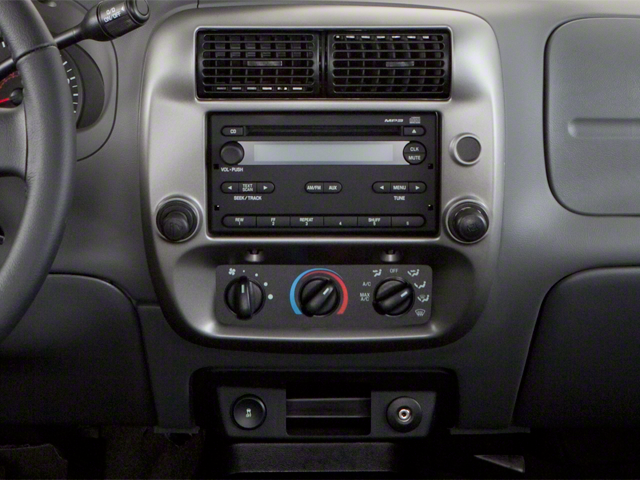

• AM/FM Stereo
• CD Player
• MP3 Capability
• Auxiliary Audio Input
• Satellite Radio
• Requires Subscription

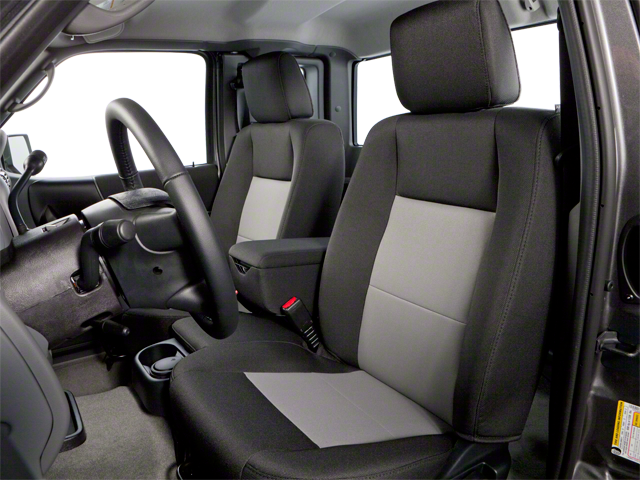

• Cloth Seats

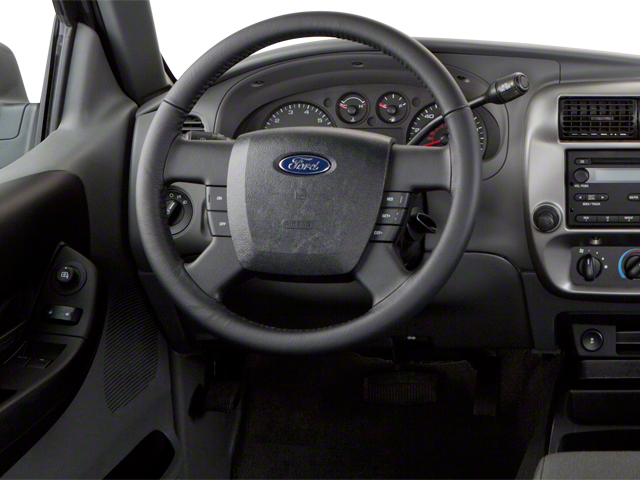

• Adjustable Steering Wheel
• Power Windows
• Keyless Entry
• Immobilizer
• A/C
• Power Outlet
• ABS
• Traction Control
• Stability Control
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag Sensor
• Front Side Air Bag
• Rear Side Air Bag
• Tire Pressure Monitor

• Mileage
• Fuel Economy Est-Combined (MPG): 17
• EPA Fuel Economy Est - City (MPG): 15
• EPA Fuel Economy Est - Hwy (MPG): 19
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 540
• Maximum Alternator Capacity (amps): 110
• Maximum Alternator Watts: 1485
• Cooling System
• Total Cooling System Capacity (qts): 7.8
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 2850
• Gross Axle Wt Rating - Rear (lbs): 2750
• Curb Weight - Front (lbs): 2209
• Curb Weight - Rear (lbs): 1532
• Gross Vehicle Weight Rating Cap (lbs): 5150
• Gross Combined Wt Rating (lbs): 7000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 3100
• Dead Weight Hitch - Max Tongue Wt. (lbs): 310
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 3100
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 465
• Suspension
• Suspension Type - Front: SLA w/Coil Springs, Torsion Bar
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 2900
• Spring Capacity - Rear (lbs): 2750
• Axle Type - Front: Twin-Forged SLA
• Axle Type - Rear: Ford Semi-Floating
• Axle Capacity - Front (lbs): 2850
• Axle Capacity - Rear (lbs): 2750
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35.1
• Shock Absorber Diameter - Rear (mm): 35.1
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11.28 x 0.39
• Rear Brake Rotor Diam x Thickness (in): 11.85 x 0.39
• Tires
• Front Tire Size: P235/75R15
• Rear Tire Size: P235/75R15
• Spare Tire Size: P235/70R16
• Front Tire Capacity (lbs): 1843
• Rear Tire Capacity (lbs): 1843
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: 717
• Revolutions/Mile @ 45 mph - Rear: 717
• Revolutions/Mile @ 45 mph - Spare: - TBD -

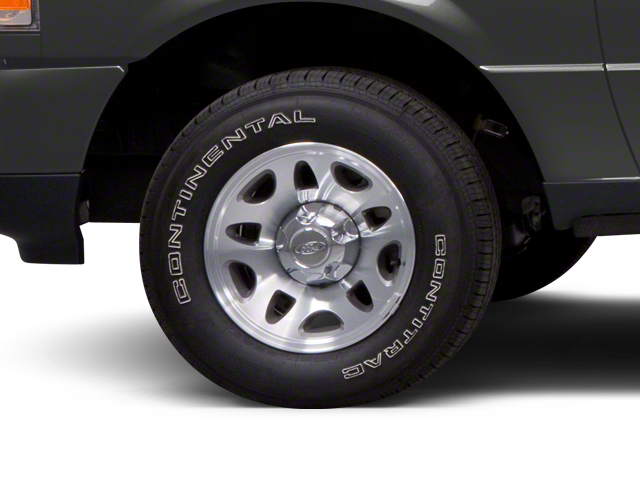

• Wheels
• Front Wheel Size (in): 15 x 7
• Rear Wheel Size (in): 15 x 7
• Spare Wheel Size (in): 16 x 7
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), On Center: 18.7
• Turning Diameter - Curb to Curb (ft): 43.0
• Turning Diameter - Wall to Wall (ft): 45.2
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 19.5
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 125.9
• Length, Overall w/o rear bumper (in): 203.6
• Width, Max w/o mirrors (in): 71.3
• Height, Overall (in): 67.7
• Overhang, Front (in): 34.0
• Overhang, Rear w/o bumper (in): 43.8
• Front Bumper to Back of Cab (in): 121.6
• Cab to Axle (in): 38.2
• Cab to End of Frame (in): 82
• Ground to Top of Load Floor (in): 31.9
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): 32.8
• Ground Clearance, Front (in): 8.2
• Ground Clearance, Rear (in): 8.2

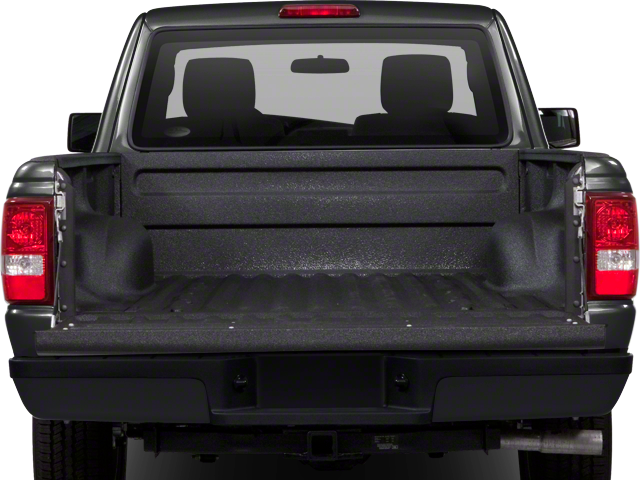

• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 72.7
• Cargo Box Width @ Top, Rear (in): 54.4
• Cargo Box Width @ Floor (in): 54.4
• Cargo Box Width @ Wheelhousings (in): 40.5
• Cargo Box (Area) Height (in): 16.5
• Tailgate Width (in): 52.0
• Cargo Volume (ft³): 37.4
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 39.2
• Front Leg Room (in): 42.4
• Front Shoulder Room (in): 54.5
• Front Hip Room (in): 52.7
• Second Head Room (in): 33.2
• Second Leg Room (in): 39.1
• Second Shoulder Room (in): 14.1
• Second Hip Room (in): 18.7
• Summary

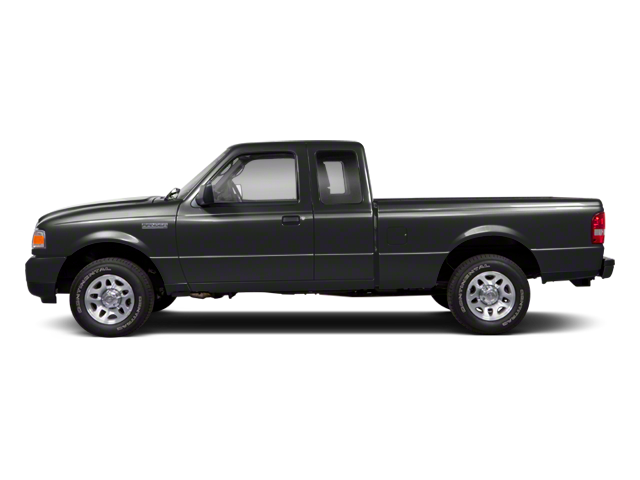

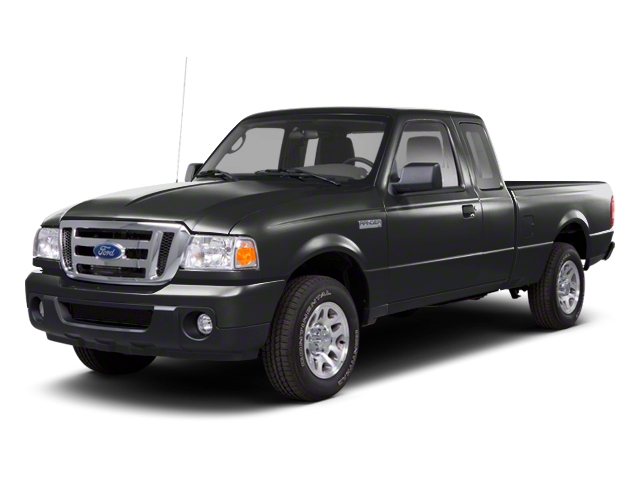

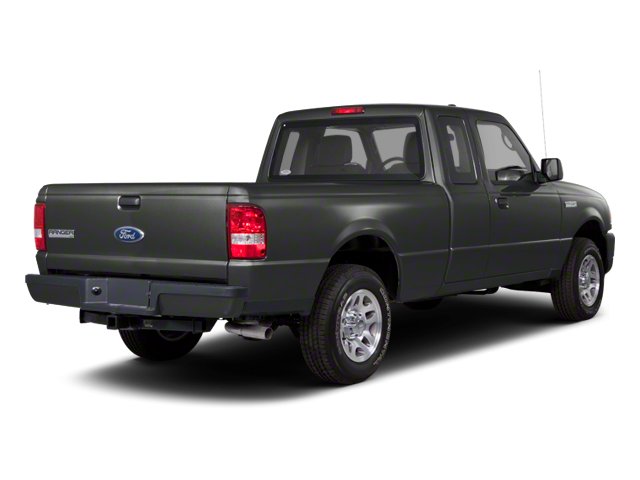

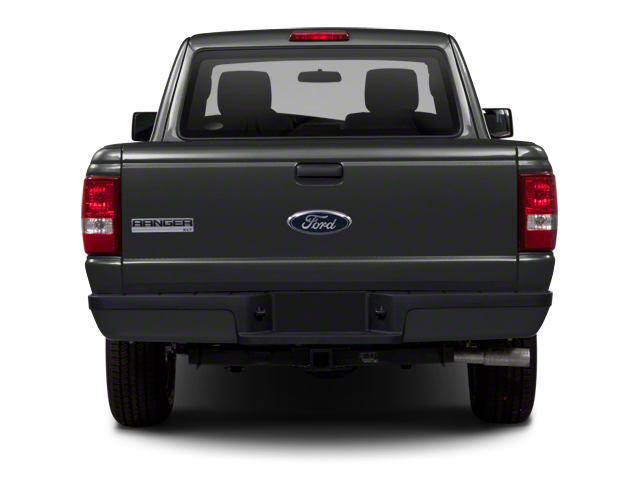

• Vehicle Name: Ford Ranger
• Body Style: Supercab 6' Styleside
• Body Code: 125.9" WB
• Emissions
• EPA Greenhouse Gas Score: 2
• Tons/yr of CO2 Emissions @ 15K mi/year: 11.0
